RESUMEN

Objective: Our objective was to describe the course and results of implementing a lean methodology program for lobectomy. Material and methods: A hospital initiative to improve efficiency started in 2012, applying the lean model in the general thoracic surgery service. Processes were mapped, eliminating non-value adding steps and identifying improvement opportunities. The impact of the lean implementation was assessed for patients that underwent lobectomy. Three periods were defined and compared: Baseline period 2008 to 2012 (period 1); Lean implementation period 2013 to 2014 (period 2); Full implementation period 2015 to 2018 (period 3). Results: 178 lobectomies were performed: 70, 29 and 79 patients during each period. Mean age was 60.29 ± 12.25 years; 99-178 (55.6%) were males. Hospital length of stay (LOS) decreased significantly during period 3 (6 versus 8 versus 4 days; p ‹ 0.001). Major complications increased significantly during period 2 (8.6 versus 24.1 versus 7.6%; p = 0.036) and stabilized thereafter. There were no differences in 30-day mortality and readmission rates between periods. Direct economic contribution margin improved significantly (-0.35 to 9.51%; p = 0.002). Conclusions: Lean implementation for lobectomy can result in decreased LOS and improved direct contribution margin. Efforts should be directed to minimize the negative impact that changing prevailing standards could have.

PALABRAS CLAVE

Lobectomy, process improvement, Lean.

Introduction

Lean is a methodology that aims to increase productivity by eliminating those steps which do not add value to a certain process. The concept of Lean was conceived by Toyota engineer Taiichi Ohno in the car manufacturing industry in the mid-seventies and has evolved into a management philosophy. Toussaint et al. defined Lean in health care as "an organization's cultural commitment to applying the scientific method to designing, performing, and continuously improving the work delivered by teams of people, leading to measurably better value for patients and other stakeholders".¹ In health care there are publications describing the Lean implementation in the operating room processes,² in esophagectomy patients,³ in medical centers^4,5 and more recently, in lung surgery.^6,7 In the actual environment of health care value,⁸ improving outcomes while containing or decreasing costs have become a main concern. The Lean model appears as a methodology to achieve this. While the model could be used in any hospital area, in this particular case, we report its use and results as an improvement tool for the lobectomy. As such, the objective of this study is to report our experience with the implementation of the Lean model in the pulmonary lobectomy process at a general thoracic surgery service in tertiary care academic medical center.

Material and methods

Our hospital is a 180 beds tertiary care academic facility located in downtown Buenos Aires, Argentina. It is one of highest volume transplant centers in Argentina.

In mid-2012, the hospital deployed a top-down strategic plan which aimed to improve hospital finances while increasing patient related outcomes. Three periods were defined: a baseline period from June 2008 to December 2012 (period 1); the lean implementation period, from January 2013 to December 2014 (period 2); and the full Implementation period, from January 2015 to June 2018 (period 3). A two-year period was considered enough time for all stakeholders to buy-in and be familiar with the lean model. Period 1 recorded metrics were followed up and compared to the same metrics during period 2 and 3; financial data was analyzed when available.

Lobectomy was selected as it is the most common major general thoracic surgery procedure. Also, The Society of Thoracic Surgeons (STS) selected this procedure for its first thoracic quality measure.⁹ Patients who underwent pulmonary lobectomy between June 2008 and June 2018 were selected from a prospectively maintained general thoracic surgery database. Prospectively collected data included, but were not limited to patient demographics, clinical presentation, radiologic findings, pathology report, type of surgical approach (open versus vide o-assisted thoracoscopic surgery -VATS-), complications, length of stay (LOS), length of chest tube drainage, mortality, surgical time and 30-day readmissions.

Lean is a toolkit consisting of various methodologies, like the value streaming map, a step by step representation of a process.¹⁰ A multidisciplinary team was assembled to develop it: thoracic surgeons, nurses, scrub nurses, pharmacists, administrative and information technology (IT) staff. Within the value streaming map, subsets of activities were identified: pre-operative evaluation; admission and business office; surgical scheduling; surgical procedure; hospital care; discharge and follow-up. Different teams focused on each one of the activities. For pulmonary lobectomy and for this report, focus was on (1) pre-operative evaluation, (2) surgical scheduling, (3) surgical procedure and (4) hospital care. Processes were mapped and each process' step was evaluated on whether it added value or not to the process. Value was defined as something that was strictly necessary to be done and could not be eliminated.

Root-Cause Analysis (RCA) and the Plan-Do-Check-Act (PDCA) improving cycle or Deming Cycle are two other tools that are core to the lean methodology.¹¹ PDCA cycle is a methodic procedure which has a special emphasis on the Plan phase. In the Plan phase of the cycle, key performance indicators (KPI) are measured and a root cause is sought for improvement using the RCA. The improvement measure is implemented in the Do phase. KPIs are measured again during the Check phase of the PDCA cycle to determine whether the process has been improved or nor. If an improvement has indeed occurred, the improvement measure is established as the new standard in the Act phase, closing the PDCA cycle.

KPIs were selected based on the baseline recorded data that were available to review. Among them were: overall complications, major complications, mortality, duration of surgery, length of chest tube drainage, hospital LOS, 30-days readmission rate and percentage of economic margin. Complications were defined as those more than grade II in the Clavien-Dindo Classification.¹² Major complications were defined as per the STS metrics for star rating, which include: pneumonia, acute distress respiratory syndrome (ARDS), bronchopleural fistula (BPF), pulmonary embolism (PE), ventilator support longer than 48 hours after surgery, reintubation, tracheostomy, myocardial infarction and unexpected reoperation.⁹ Mortality was defined as the one that occurred prior to discharge or within 30-days of surgery. The economic result was defined as the difference between the revenue from the procedure and the direct costs incurred to do it. Because of high inflation in Argentina, which makes temporal absolute measurements inaccurate, a margin percentage was calculated.

As a process measurement tool, control charts were used. Control charts are analytical tools used in the Six Sigma methodology.

Findings and Interventions

• 1. Pre-operative evaluation: a nurse coordinator was selected to follow the patients all along the process: from the initial evaluation in the clinic, up to the follow-up appointment after surgery. Special emphasis was placed on the usual postoperative course. Some complications, as prolonged air leak, were explained in greater detail. It was explained to every lobectomy patient that there was a 1 in 10 probability of having this complication, which required them to be discharged with a chest tube and a Heimlich Valve. An explicit objective of discharge date was discussed.
• 2. Surgical Scheduling: the perception among the staff was that OR availability was not enough and it was frequent to start cases after 7 p.m. OR time was allotted on a first call, first serve basis. The real OR occupation (measured from skin incision to skin closure) was measured and the time needs of the surgical teams was inquired. Real occupation was 45% during week days from 7 a.m. to 9 p.m. A RCA showed that a system of scheduling by surgical blocks was a likely solution. Fixed surgical blocks were assigned to each one of the surgical teams. As a result, major general thoracic cases were scheduled to be done once a week from 8 a.m. to 5 p.m.
  Surgical times were strictly recorded in the operative report by the circulating nurse, who asked the anesthesiologist and the surgeon the anesthesia and surgical times, respectively. A monthly balanced score card was developed and distributed among the different surgical teams.
• 3. Surgical Procedure: some steps of the lobectomy process were eliminated, like the usage of the axillary roll, the placement of a central lines, epidural catheter and urinary catheter. The minimally invasive approach (VATS) was intended to be used more often with early stage lung cancers and the use of ultrasonic scalpel was incorporated on a routine basis during the lean implementation period.
• Teams were re-assigned so each surgical team had his regular anesthesiologist and OR staff.
• 4. Hospital care: a multidisciplinary team was gathered to standardize the pain management. Once the guideline was finalized, it was communicated and made available to each one of the hospital floors were thoracic surgery patients spend their recovery. The use of epidural catheters was discontinued. Routine daily chest X-rays were eliminated and ordered only according to the clinical picture of the patient. Air leaks that were apparent on POD#2 were dealt with a Heimlich valve, after checking adequate lung expansion with an X-ray. An explicit objective of discharging lobectomy patients by post-operative day #3 was discussed with patients.

Statistical analysis

Descriptive statistics were shown by the use of mean, median, standard deviation, 25-75 interquartile range and frequency, as appropriate. Statistical testing was performed on SPSS software (IBM SPSS Statistics Version 25, IBM Corporation, Armonk, NT, United States).

Results

During the study period 178 lobectomies were performed: 70, 29 and 79 patients were performed in period 1, 2 and 3, respectively. Mean age was 60.29 ± 12.25 years; 99/178 (55.6%) were males. Overall major complications occurred in 19/178 (10.7%) and 30-day mortality rate was 5/178 (2.8%). Patients' demographics in each period are presented in Table 1.

Table 2 shows operative and postoperative results. Of note, hospital length of stay (LOS) decreased significantly during period 3 (6 versus 8 versus 4 days; p < 0.001). Major complications peaked significantly in period 2 (8.6 versus 24.1 versus 7.6%; p = 0.036) and stabilized thereafter. There were no differences in 30-day mortality (1 versus 2 versus 2; p = 0.319) and readmission rates (7 versus 1 versus 9; p = 0.455) between periods. Direct contribution margin improved significantly from period 2 to period 3 (-0.35 to 9.51%; p = 0.002). The number of patients that were discharged by post-operative day #3 was significantly higher during period 3 (11.4 versus 6.9 versus 44.3%; p < 0.001).

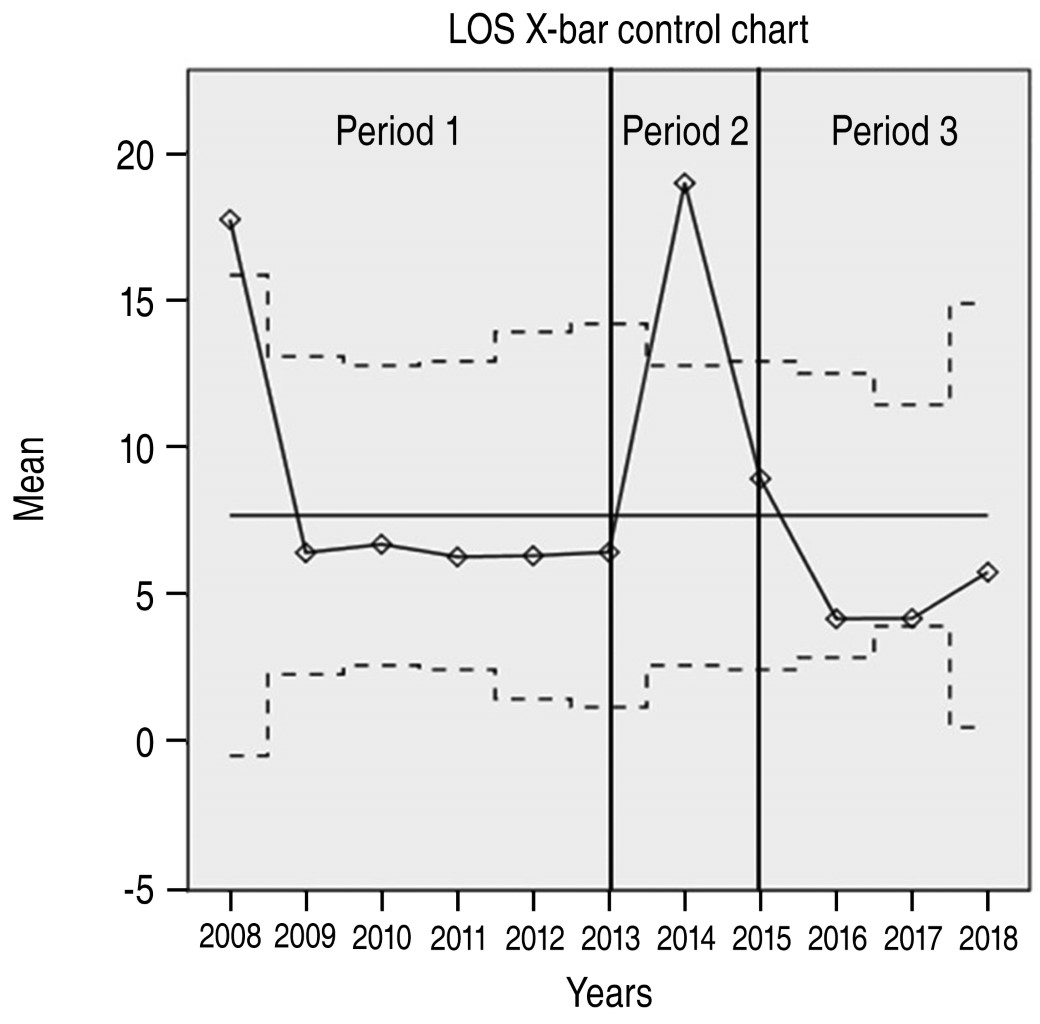

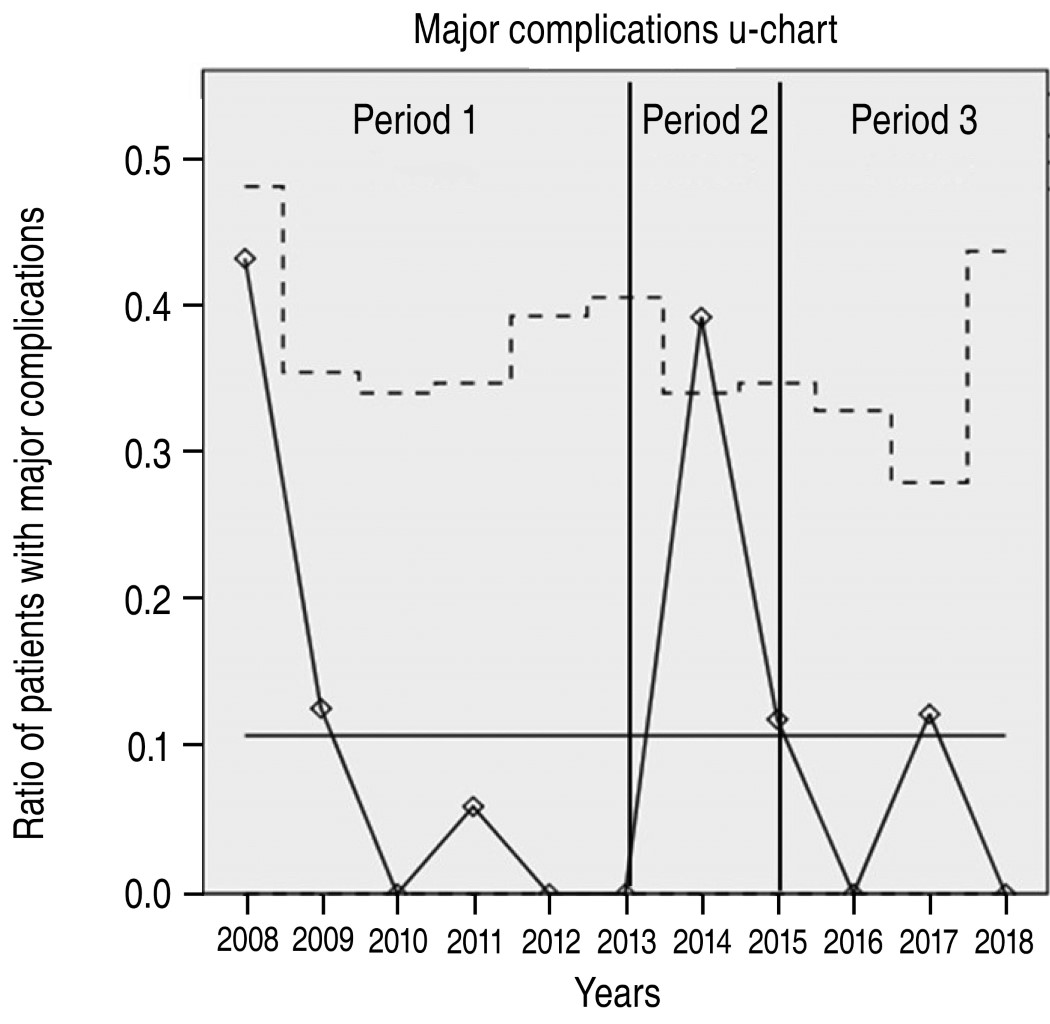

Figures 1 and 2 shows control charts for selected processes. The hospital LOS X-bar (Figure 1) and the complications u-chart (Figure 2) show special cause of variations during period 2. These variations disappeared in period 3.

Discussion

The motivation behind this implementation was a hospital endeavor to improve finances while improving patients' outcomes started back in 2012. The Lean model is a management philosophy that it is recommended to be funneled through the whole organization with a top-down approach.^4,5,10 Unfortunately, this was not the case for our study as the lean model was only used as a model for quality improvement in the OR and our general thoracic surgery service.

Cima and colleagues described the use of Lean to improve OR efficiency at the Mayo Clinic in Rochester.² In their study, the creation of a Surgical Process Improvement Team to identify and implement improvement measures, improved on-time starts and OR operating margin. Cerfolio and colleagues reported the results of a Lean implementation in pre-incision time for pulmonary lobectomy,⁶ while Iannettoni described the use of Lean for esophagectomy patients.³ The value of our study lies in that it has been done in a different environment than the previous reports and our findings are still similar. Argentina has an allied health care staff force heavily unionized which might offer some hurdles at the time of introducing labor changes. Also, inflation is a chronic problem in the country which makes strategic planning a real challenge. With these caveats in mind, achieving high efficiency is a high priority to keep a financially viable organization. This is where the lean methodology fits in.

Our main findings were that after the Lean implementation the hospital LOS decreased from a median of 6 to 4 days (p > 0.001), while the direct economic margin improved from a negative -0.35% to a positive 9.51% (p = 0.002). Unfortunately, we did not have a detailed case by case financial data of patients that were operated during period 1. However, we knew from our administrative records, that the margin for lobectomy was considered negative during period 1.

By the end of the study period, no significant increase in morbidity or mortality was observed. Also, something as simple as setting an explicit objective date for discharge, eased to meet the target in 44.3% of patients during period 3.

Of note is how major complications and hospital LOS increased during period 2. We do not have a certain explanation for these findings, but we can hypothesize that proposed changes were not welcomed when first introduced. However, we cannot specify how these changes lead to an increase in major complications. Changing an established practice is a slow process that can only be attained when the main stakeholders feel that they are part of the process. This is why we gather multidisciplinary teams to map and analyze the processes, taking a period of two years to implement changes.

We observed no problems associated with the removal of any of the elements that were eliminated.

Once a process has been mapped, it is important to choose the right metrics to measure it. The metric definition and how the measurement will take place should be specifically defined and communicated among the stakeholders. When metrics are not correctly defined or doubt arises on how the data is collected, trust is lost and it is very difficult or even impossible to restore it. This is why we choose fairly simple performance metrics to follow our processes. Also, we had the constraint of choosing metrics which we have already been measuring in period 1.

Control charts provide a visual clue on how a process is performing and offers objective evidence on special causes of variation. Special variation is spotted on control charts as recordings outside the control limits. In the case of our study, a special variation was visualized on major complications during the Lean implementation phase. The suspected cause for special variation was the Lean implementation itself. Despite it raised our concerns, after reviewing each process' step that we had eliminated or had changed, we still believed we could improve our process by the use of lean and we kept pursuing the objective. Another possible cause of special variation was that by the same time, a strategic plan that was being deployed in the whole Institution. Economic results for each individual surgical group had started to be monitored and reported. Certainly, this created some strain in the hospital staff as it was a practice that has never being done before. We cannot draw definite conclusions about the relationship between these facts and our results, but our hypothesis is that some association could have existed.

Our study has limitations which we should recognize. Despite the study time frame extends over 10 years, the number of lobectomies during some periods was fairly low to draw definitive conclusions. However, it is important to note how some metrics deteriorated during the Lean implementation period.

Inspired by a recent report, we look for simplifying our surgical VATS tray.¹² From an existing tray of 43 instruments and with the help of our scrub nurse, we reduced it to 16 instruments. More recently, we revised the provisions that are taken from the supply room to the OR and reduced the number by 57%. The monetary value reduction of the supplies that were not mobilized to the OR was 70%.

Value can be increased by improving patient related outcomes or by decreasing costs. Non-value added steps are a hidden source of costs. Every process can be mapped, reviewed and improved with the objective of providing better outcomes while reducing costs. The Lean methodology provides an effective frame-work to address both.

Conclusions

We showed how the Lean methodology can be used to improve the lobectomy process. It can result in decreased hospital LOS. However, introducing changes is not without risks as we evidenced during the Lean implementation period with a significant increase of major complications. Efforts should be directed to minimize the negative impact that challenging prevailing process could have.

REFERENCIAS

1. Toussaint JS, Berry LL. The promise of lean in health care. Mayo Clin Proc. 2013;88(1):74-82. https://doi.org/10.1016/j.mayocp.2012.07.025

2. Cima RR, Brown MJ, Hebl JR, Moore R, Rogers JC, Kollengode A, et al; Surgical Process Improvement Team, Mayo Clinic, Rochester. Use of lean and six sigma methodology to improve operating room efficiency in a high-volume tertiary-care academic medical center. J Am Coll Surg. 2011;213(1):83-94. https://doi.org/10.1016/j.jamcollsurg.2011.02.009

3. Iannettoni MD, Lynch WR, Parekh KR, McLaughlin KA. Kaizen method for esophagectomy patients: improved quality control, outcomes, and decreased costs. Ann Thorac Surg. 2011;91(4):1011-1018. https://doi.org/10.1016/j.athoracsur.2011.01.001

4. Toussaint J, Roger A. On the mend: Revolutionizing healthcare to save lives and transform the industry. Boston, MA: Lean Enterprises Inst Inc; 2010.

5. Cerfolio RJ, Steenwyk BL, Watson C, Sparrow J, Belopolsky V, Townsley M, et al. Decreasing the preincision time for pulmonary lobectomy: the process of lean and value stream mapping. Ann Thorac Surg. 2016;101(3):1110-1115. https://doi.org/10.1016/j.athoracsur.2015.09.004

6. Cerfolio RJ, Smood B, Ghanim A, Townsley MM, Downing M. Decreasing time to place and teach double-lumen endotracheal intubation: engaging anesthesia in lean. Ann Thorac Surg. 2018;106(5):1512-1518. https://doi.org/10.1016/j.athoracsur.2018.06.023

7. Porter ME. What is value in health care? N Engl J Med. 2010;363(26):2477-2481. https://doi.org/10.1056/nejmp1011024

8. Kozower BD, O'Brien SM, Kosinski AS, Magee MJ, Dokholyan R, Jacobs JP, et al. The Society of Thoracic Surgeons composite score for rating program performance for lobectomy for lung cancer. Ann Thorac Surg. 2016;101(4):1379-1387. https://doi.org/10.1016/j.athoracsur.2015.10.081

9. Pyzdek T, Keller P. The six sigma handbook. 3rd ed. New York, NY: McGraw-Hill; 2009.

10. Sobek D, Smalley A. Understanding A3 thinking. Boca Raton, FL: Productivity Press; 2008.

11. Clavien PA, Barkun J, de Oliveira ML, Vauthey JN, Dindo D, Schulick RD, et al. The Clavien-Dindo classification of surgical complications: five-year experience. Ann Surg. 2009;250(2):187-196. https://doi.org/10.1097/sla.0b013e3181b13ca2

12. Chicos KH, Linsky PL, Wei B, Minnich DJ, Cerfolio RJ. Cost savings of standardization of thoracic surgical instruments: the process of lean. Ann Thorac Surg. 2017;104(6):1889-1895. https://doi.org/10.1016/j.athoracsur.2017.06.064
